- Length x Width :
- 570 x 435 cm
- Height:
- Central: 250 cm
Doors: 170 kg
- Weight:
- 50 kg
- SHADE COVER
SURFACE - 20 m2
| TENT | Woven PE - ICRC/IFRC standard |
| GROUNDSHEET | Woven PE - ICRC/IFRC standard |
| MOSQUITO | Polyester PVC coated |
| POLES | 5 identical poles 834 cm ((Aluminium 6061-T6 Ø 18,5 mm) |
| PEGS | 6 T Pegs (25 x 25 x 3 mm) 40 cm |
| Colors | white |
Available upon request
| Connectability Options | Gable / Lateral / Cross Connector |
| Partition Set | Included |
| Inner and Winter Liner | Breathable FR fabric / Breathable quilted FR fabric |
| Cabins | Individual Cabin / Isolation Cabins / Negative Pressure Cabins |
| A/C and Heating Solutions | Available |
| Ceiling Net | Included |
| Lighting Kits | Available |
| Hard Flooring | Optional |
| Sanitary Solutions | Toilet Cabin / Shower Cabin |
| SHELF LIFE | Min. 5 years in good warehousing conditions |
| TREATMENTs | Fungi/mould resistance treated |
| SETUP | Easy setup (15 min | 3 persons) |
| DOORS | 2 doors (90 x 170 cm), 1 on the center of each tent gable ends |
| WINDOWS | 6 windows (50 x 50 cm), 2 on each side of the tent and 1 next to each other. |
| CHIMNEY | 1 chimney reinforcement. |

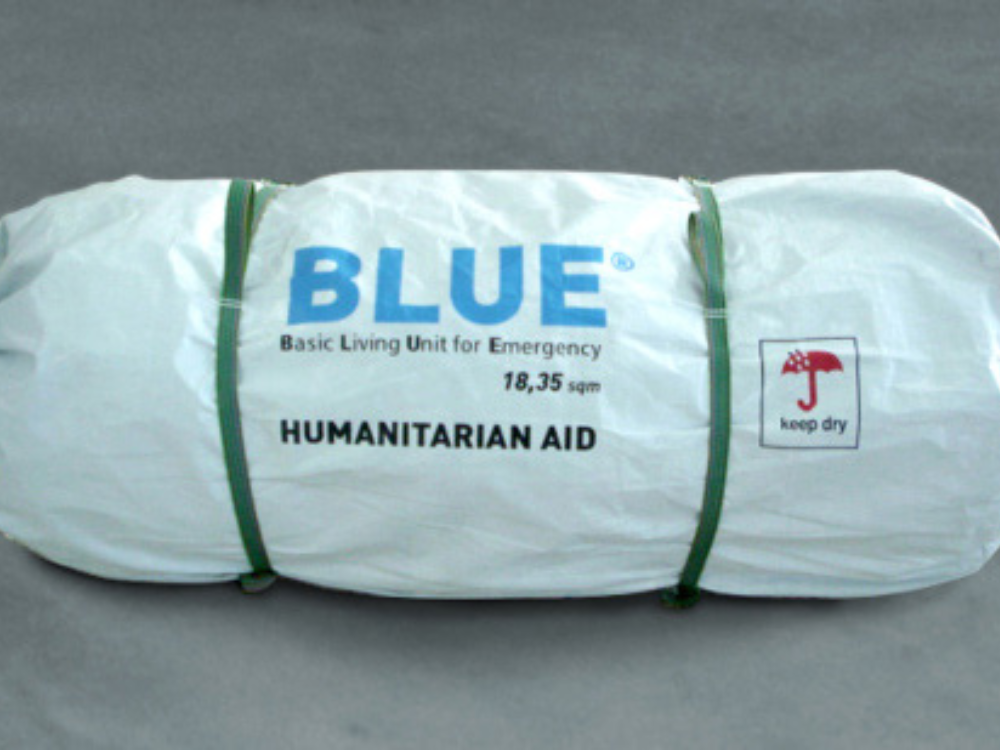

| PACKING UNIT (P.U.) | PE bag with separated webbing bands + handle |
| CONTENT P.U. | Shade cover, outer tent, inner separation, accessories, hammer and repair kit |
| QTY P.U. | 1 piece |
| P.U. MEASUREMENTS |
DIMENSIONS: 110 x 45 x 35 cm Weight: max.50 kg Volume: 0,17 m3 |
| QTY PALLET | 8 pcs |
| PALLET MEASUREMENTS |
DIMENSIONS: 130 x 78 x 114 cm Weight: 392 kg Volume: 1,16 m3 |
| LOADING |
PACKED QTY 20 FT DC 140 pcs unpalletized | 128 pcs palletized PACKED QTY 40 FT DC 310 (est.) pcs unpalletized | 228 pcs palletized PACKED QTY 40 FT HC 340 pcs unpalletized | 228 pcs palletized |
