- LENGTH X WIDTH
- 4 x 60 m ± 1%
- WEIGHT
-
190 g/m2 ± 20 g, plus 10% for the reinforcement bands
(approx. 5 kg)
| MATERIAL |

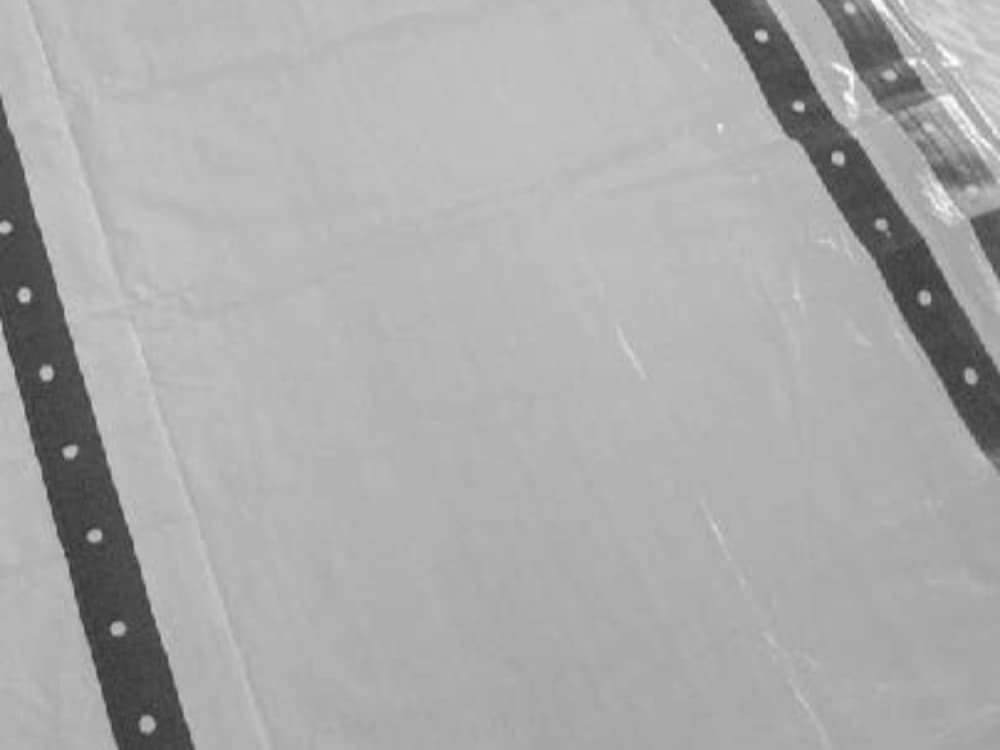

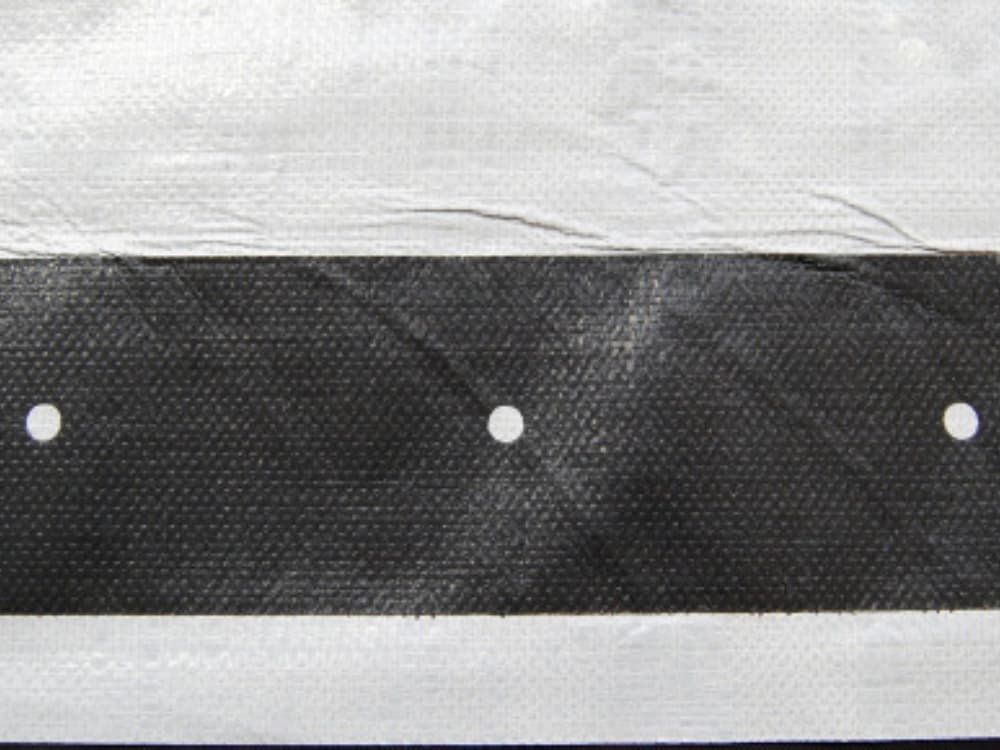

Woven HDPE black fibers fabric laminated on both sides with LDPE coating with 6 reinforced bands made of HDPE in the length I Prepunched 8 mm holes on the 2 side bands at 0,1 m intervalswith aluminium eyelets on 4 sides every 100 cm |
| UV RESISTANCE |
Max. 20% loss on original tensile strength and not less than 475N after 1500 UV exposure (UVB 313nm peak) |
| TEMPERATURE RESISTANCE |
-20 to 80°C |
| TENSILE STRENGTH |
Min. 500 N and 15% to 25% elongation in warp and weft as per ISO 1421-1 Min. 700 N inside the reinforcement bands as per ISO 1421-1 |
| TEARING STRENGTH | Min. 100 N in warp and weft as per ISO 4674-1B, |
| COLOR |
White with dark grey reinforcement bands I Inner black fibres to ensure opacity |
Available upon request
| PACKING UNIT (P.U.) | Bale |
| QTY P.U. | 1 pcs |
| P.U MEASUREMENTS |
DIMENSIONS: 210 x 20 x 20 cm WEIGHT: 45 kg VOLUME: 0,084 m3 |
| QTY PALLETS | 18 to 20 pieces per metal stackable pallets |
| PALLETS MEASUREMENTS |
DIMENSIONS: 225 x 105 x 112 cm WEIGHT: 880 to 910 kg VOLUME: 2,646 m3 |
| LOADING |
PER 20 FT DC 210 pcs unpalletized | 186 pcs palletized PER 40 FT DC 530 pcs unpalletized | 408 pcs palletized PER 40 FT HC 530 pcs unpalletized | 408 pcs palletized |
