XPERT 24 TENT – HPT 24
XPERT 24 TENT – HPT 24
XPERT 24 TENT – HPT 24
XPERT 24 TENT – HPT 24
XPERT 24 TENT – HPT 24

XPERT 24 TENT – HPT 24

Floor Area: 24 m²
Dimensions: 400 × 600 cm
Central Height: 300 cm
Material: Woven PE 250 gsm – water, rot & UV proof – FR CPAI-84 Section 6
Windows: 2 per side – 3-layer with mosquito mesh and PVC flap
Frame: Aluminium pipes with steel connectors
Wind Resistance: 100 km/h
Snow Load: 300 N/m²
Life Span: 24+ months
Packaging: 225 × 69×74 cm – 267 kg

SKU: XPERT24
Product type: Multipurpose Tent
Download Details
Get a Quote
Dimensions
Length x Width (Outer Tent):
400 x 600 cm
Height:
Central: 300 cm
Doors: 200 cm
Shade cover: 330 cm
Floor Area:
24 m²
Doors:
1 per gable | 190 x 200 cm
Windows:
2 per side | 135 x 135 cm
Materials
Tent UNICEF Standard:
Woven PE 250 gsm – water, rot and UV proof – FR CPAI-84 Section 6

ECO-Efficient Alternative:
Woven PE 170 gsm – with 15% recycled material – water, rot and UV proof – FR EN13823+A1
Groundsheet Woven PE 250 gsm – water, rot and UV proof
Windows 3 layered: roll-up PE flap, fixed mosquito mesh, and transparent PVC roll-up flap
Frame / Poles Aluminium pipes with steel cross pipe connectors
Shade Cover UNICEF Standard:
Woven PE 175 gsm – water, rot and UV proof – FR CPAI-84 Section 6

ECO-Efficient Alternative:
Woven PE 170 gsm – with 15% recycled material – water, rot and UV proof – FR EN13823+A1
Colors Tent liner: white
Groundsheet: grey
Logo printing

Available upon request

Add-ons
Connectability Options Gable / Lateral / Cross Connector
Partition Set Included
Inner and Winter Liner Breathable FR fabric / Breathable quilted FR fabric
Cabins Individual Cabin / Isolation Cabins / Negative Pressure Cabins
A/C and Heating Solutions Available
Ceiling Net Included
Lighting Kits Available
Hard Flooring Optional
Sanitary Solutions Toilet Cabin / Shower Cabin
Performance and characteristics
Life Span 24+ months exposure in all climates, with proper anchoring and maintenance
Shelf Life Minimum 5 years
FR CPAI 84 Section 6 (max. afterflame average 10s)
Desinfectability Easily disinfected, not sensitive to fungi or mould
Wind Resistance Minimum 100 km/h with shade net
Snow Load Minimum 300 N/m with wire cable and tensioner
Features and specifications
Tent Liner Panels Separated roof, gables, and wall panels for easy setup and handling
Doors 1 door opening per gable. Door flap can be opened and used as an awning.
Windows 2 windows on each side
Ventilations Triangular gable top ventilation opening and side wall ventilation above each window
Groundsheet Bathtub style with minimum 15 cm upstanding sides and velcro strip
Pegs 4 T-Peg 50 cm, 10 T-Peg 40 cm, 14 Rebar Peg 60 cm, 4 earth anchors
Shade Cover With anti-water pockets and integrated fuse systems for enhanced wind resistance and improved roof load capacity
Air Inlet Ø 35 cm at left bottom side of each gable (inside view)
Chimney Patch 35 x 75 cm, made of non-perforated heat-resistant material. Can be completely closed with roll-down PE flap.

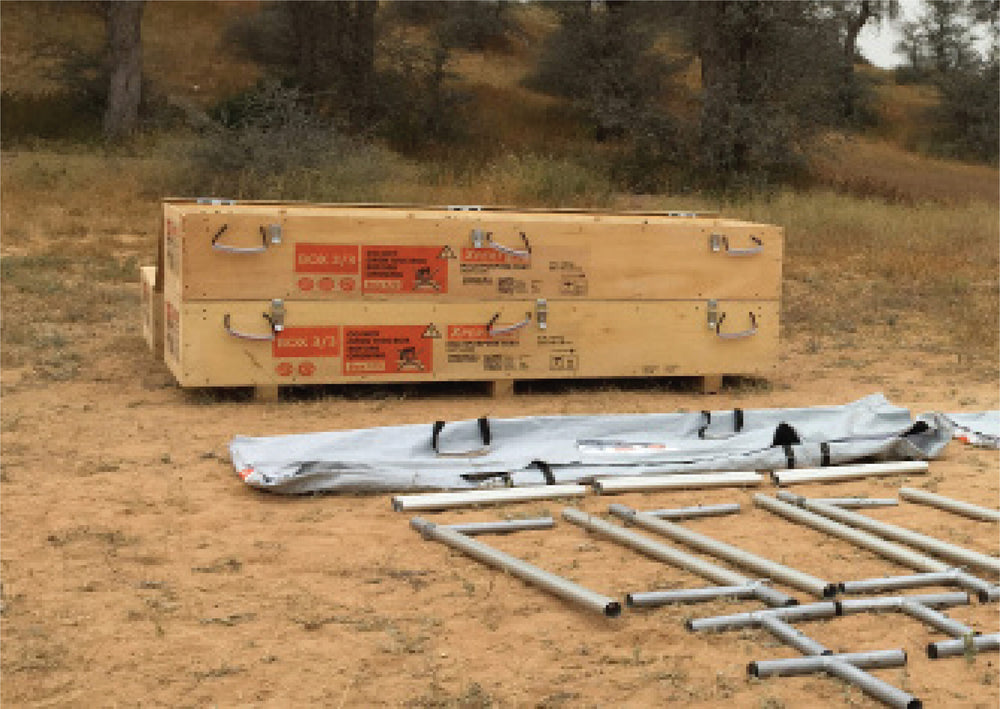

Packing
Packing Unit (P.U.) Packed into 2 strapped-together wooden crates. Content of the boxes is packed into multiple PE carrying bags.

Box 1: 225 x 69 x 35 cm - 142 kg
Box 2: 225 x 69 x 30 cm - 125 kg
Content P.U. Tent liner, shade cover, groundsheet, frame, accessories, hammer, and repair kit
QTY P.U. 1 piece
P.U. Measurements Dimensions: 225 x 69 x 74 cm
Weight: ± 267 kg
Volume: 1.14 m³
Loading Packed QTY 20 FT DC CTN: 24 pcs palletized
Packed QTY 40 FT DC CTN: 48 pcs palletized
Packed QTY 40 FT HC CTN: 48 pcs palletized
